0.5% Accuracy, NEMA 4X (IP66) Enclosure

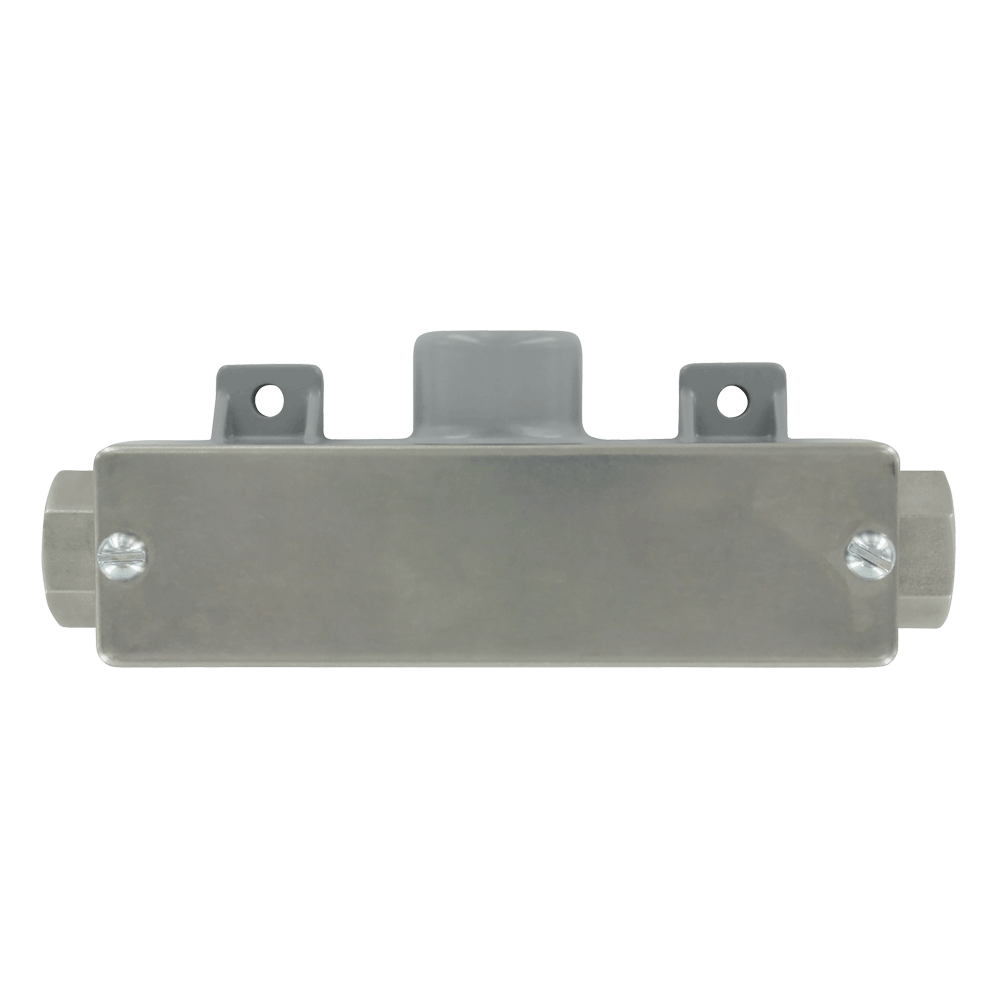

629C系列濕/濕差壓變送器監測空氣和兼容氣體和液體的差壓，精度0.5%。該設計采用雙壓力傳感器，將壓力變化轉換為標準的4至20 mA輸出信號或現場選擇電壓。小的內部體積和最小的運動部件導致異常的響應和可靠性。終端塊，以及零位調整按鈕，很容易進入頂蓋下。

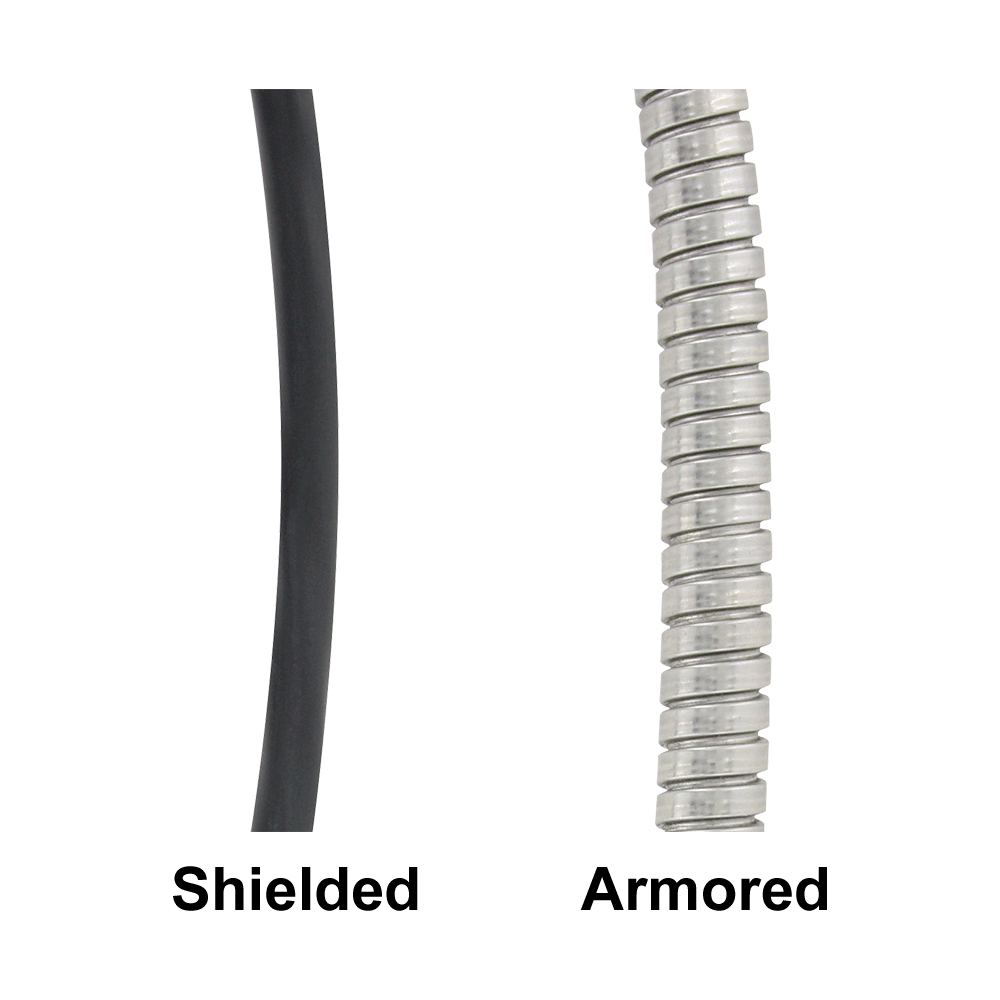

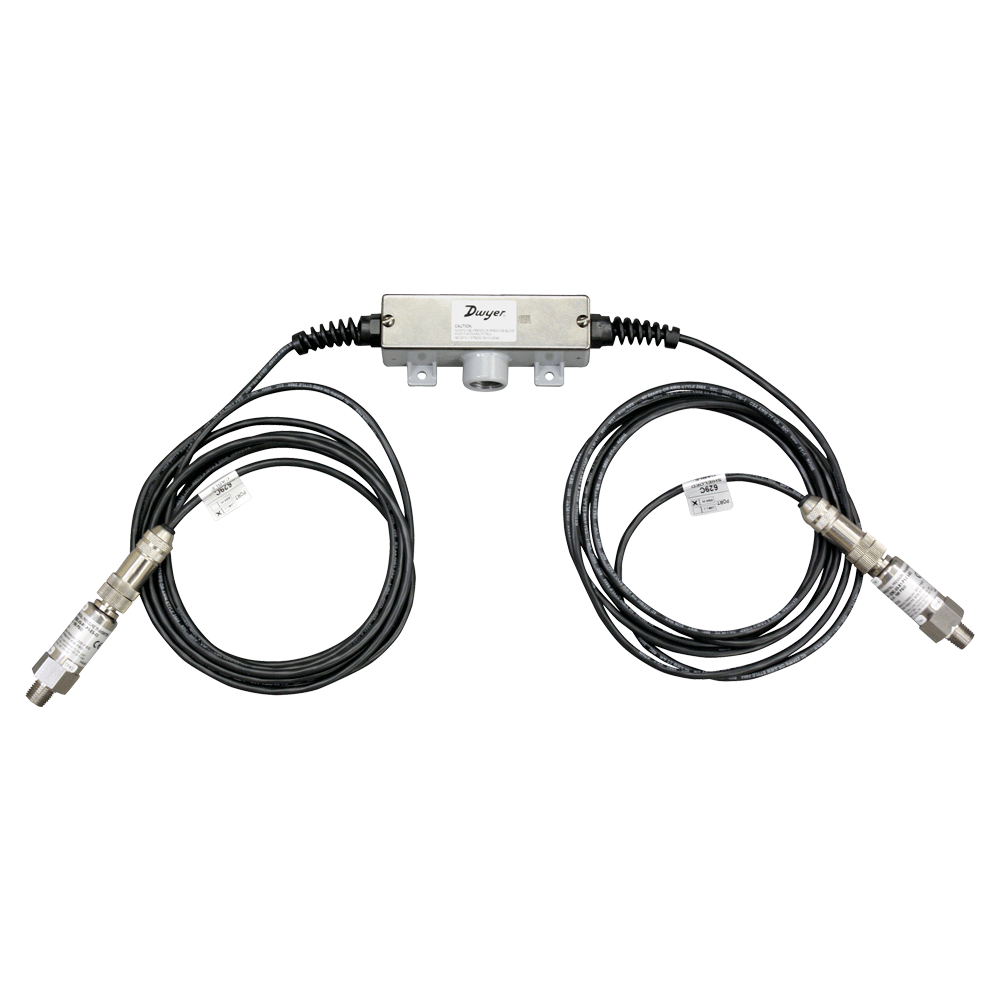

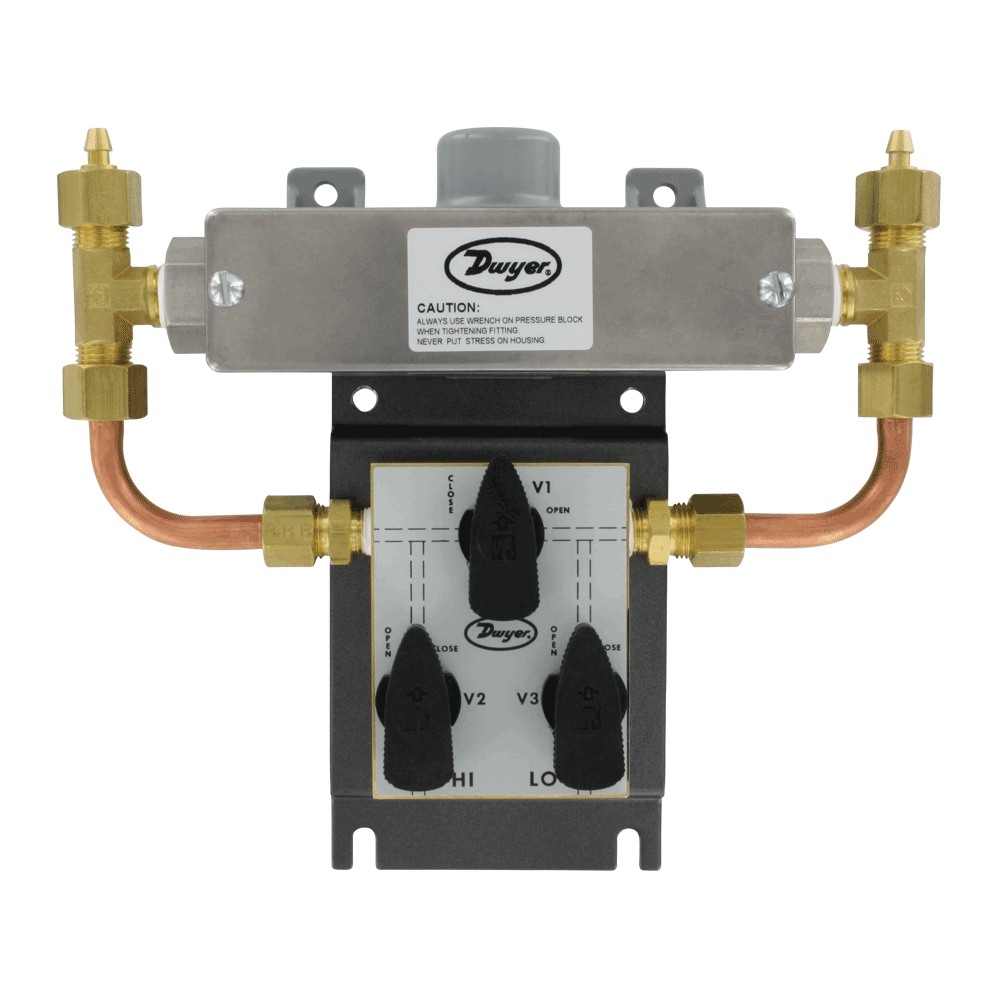

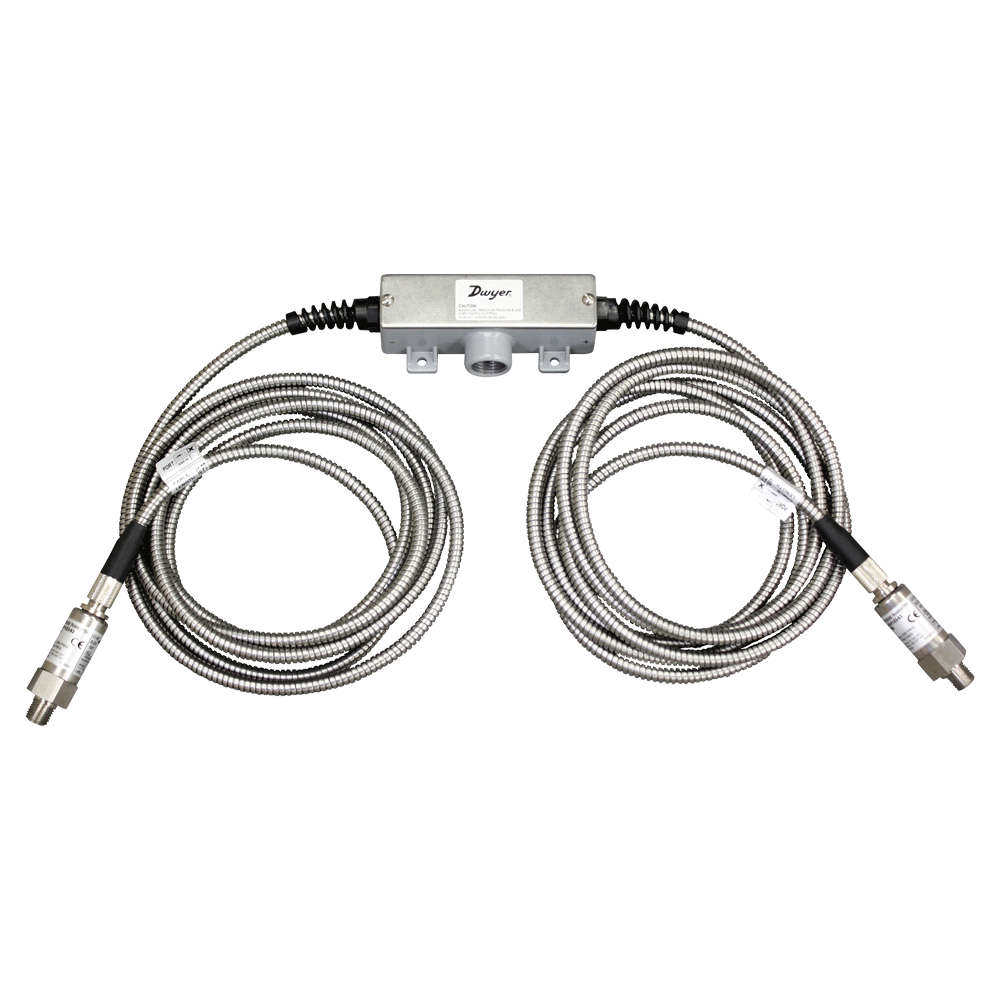

629C系列具有可選的工廠安裝的遠程傳感器，通過鎧裝或屏蔽電纜連接到單元上，長度有10 '和20'。與傳統銅管安裝相比，安裝更加簡單，減少了人工和材料成本，而且不需要閥門管匯。

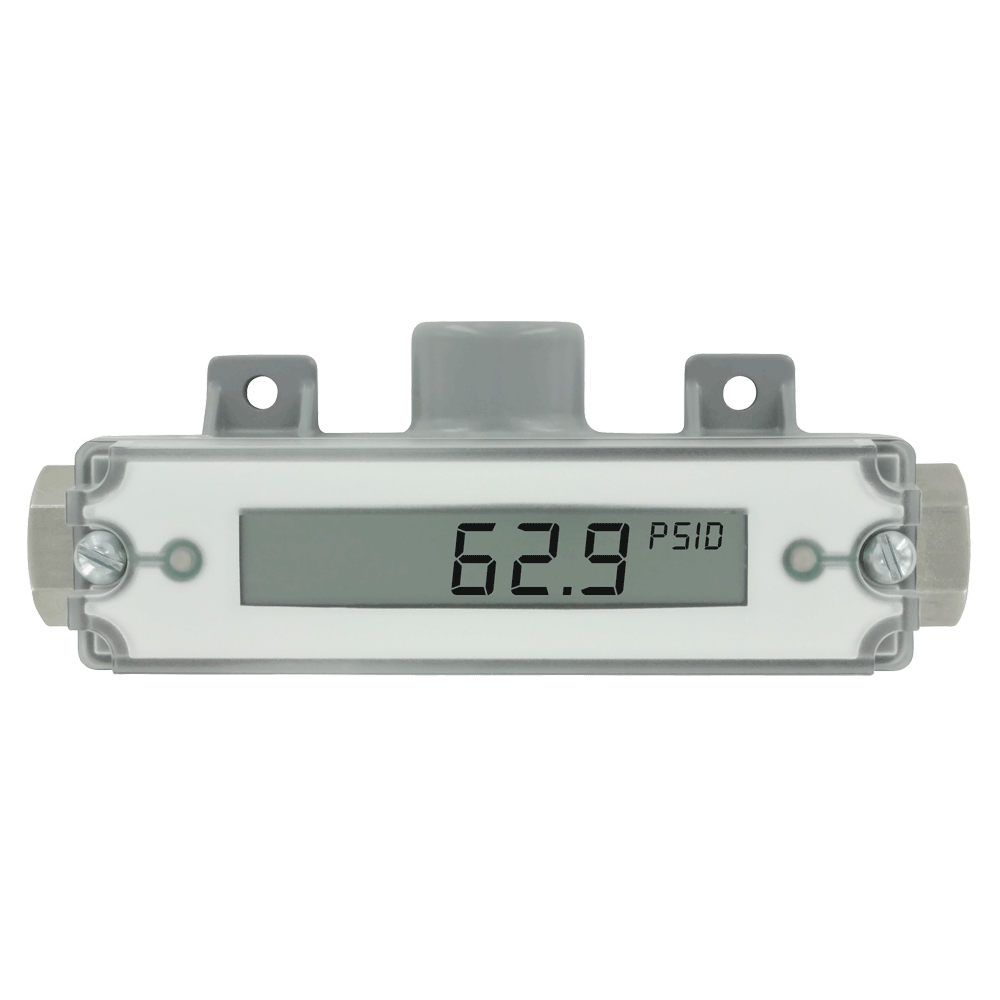

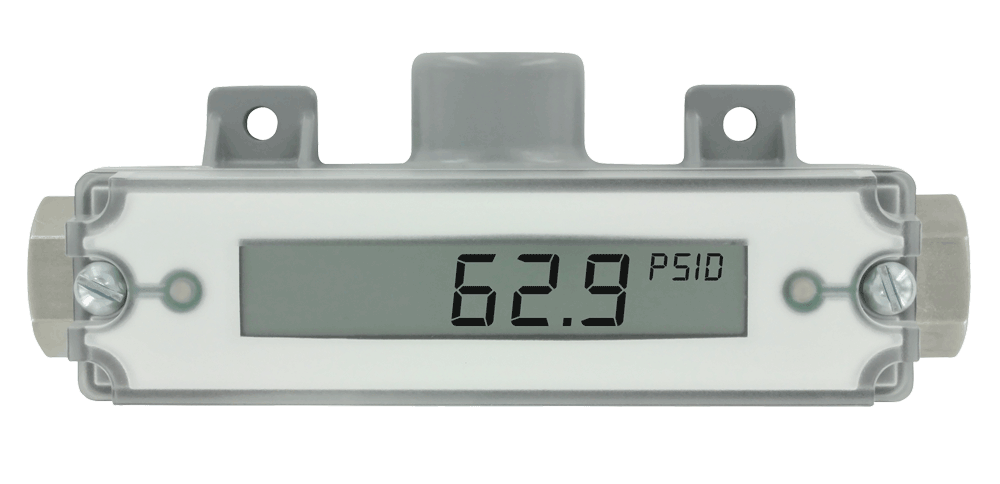

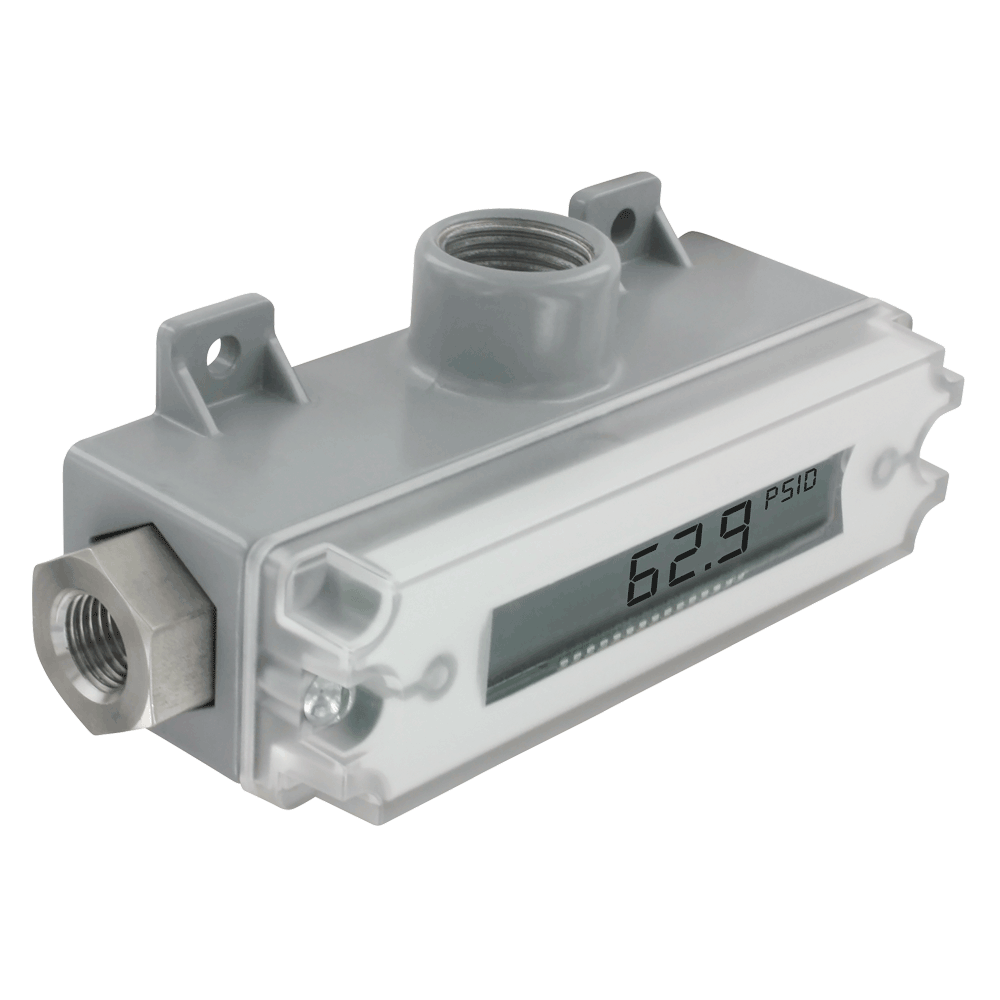

629C系列擁有強大的NEMA 4X (IP66)結構，還配有一個集成的LCD，用于本地化數據監控。
應用及案例
● Flow elements
● Heat exchangers
● Filters
● Coils
● Chiller
● Pumps
產品特色
● Powered by either DC or AC - take advantage of most readily available power source reducing installation costs
● Optional LCD does not need a separate power supply - lowers installed cost
● Selectable voltage range - provides flexible choice for changing design or inputs for process/HVAC controllers being used to monitor and control
● Push button zero (versus trim pot) - more simple zeroing provides easy install and calibration reducing installation time and possibility of operator error
● Optional LCD indicator provides local status to identify operational condition
● Remote sensor option reduces installation labor and material
